10G SFP+ BIDI 10KM Optical Transceiver

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-SFP+-BIDI-LR-23/32
MOQ: 1PC
Price: Negotiable
Packing Details: PVC box+plastic tray+outer carton
Delivery Time: 2-3 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month

10Gb/s BIDI 1270/1330nm LC 10km sfp+ Transceiver Fiber Optical Transceiver

TS-SFP+-BIDI-LR-32/23

Features

Ÿ Operating data rate up to 10.3Gbps

Ÿ Two types: 1270nm DFB Transmitter/ 1330nm Receiver 1330nm DFB Transmitter/ 1270nm Receiver

Ÿ Distance up to 10km @50 / 125 um MMF

Ÿ Single 3.3V Power supply and TTL Logic Interface

Ÿ LC Connector Interface

Ÿ Hot Pluggable

Ÿ Power Dissipation < 1.5 W

Ÿ Compliant with MSA SFP+ Specification SFF-8431

Ÿ Compliant with IEEE 802.3ae 10GBASE-LR/LW

Ÿ Operating Case Temperature Standard : 0°C to +70°C

Applications

Ÿ 10GBASE-SW at 9.953Gbps

Ÿ 10GBASE-SR at 10.3125Gbps

Ÿ Other optical links

Description

The TS-SFP+-BIDI-LR-XX series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

The TS-SFP+-BIDI-LR-23 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm; TS-SFP+-BIDI-LR-32 module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Product Name	Fiber Optical Transceiver	Datarate	10G
Wavelength	1330nm/1270nm	Transmission Distance	10KM
Connector	LC	Fiber Type	Single Fiber, Single Mode
Application	Gigabit Ethernet,Fiber Channel,Switch To Switch Interface	Warranty	3 Years
High Light	bidirectional fiber optic transceiver, fiber optic sfp module

Ordering information

Part Number	Product Description
TS-SFP+-BIDI-LR-32	Tx1330nm/Rx1270nm, 10Gbps, LC, 10km, 0°C~+70°C, With DDM
TS-SFP+-BIDI-LR-23	Tx1270nm/Rx1330nm, 10Gbps, LC, 10km, 0°C~+70°C, With DDM

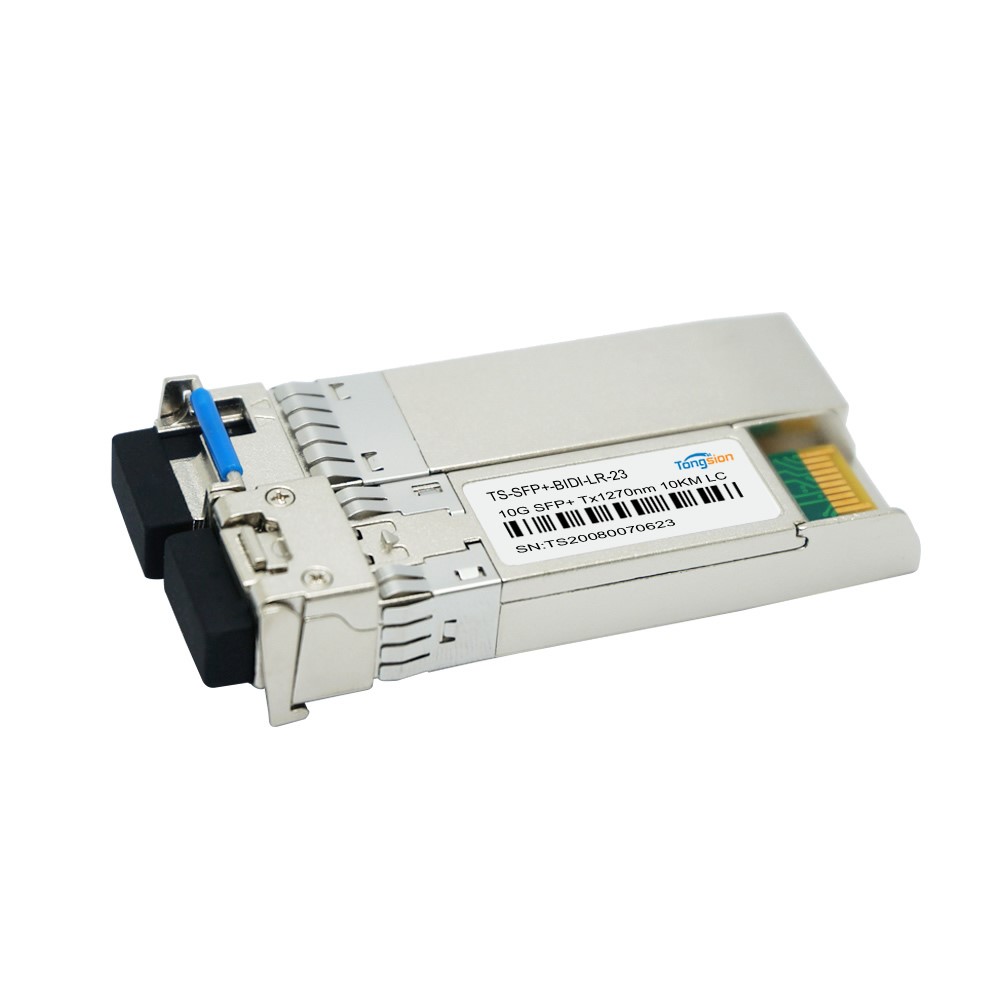

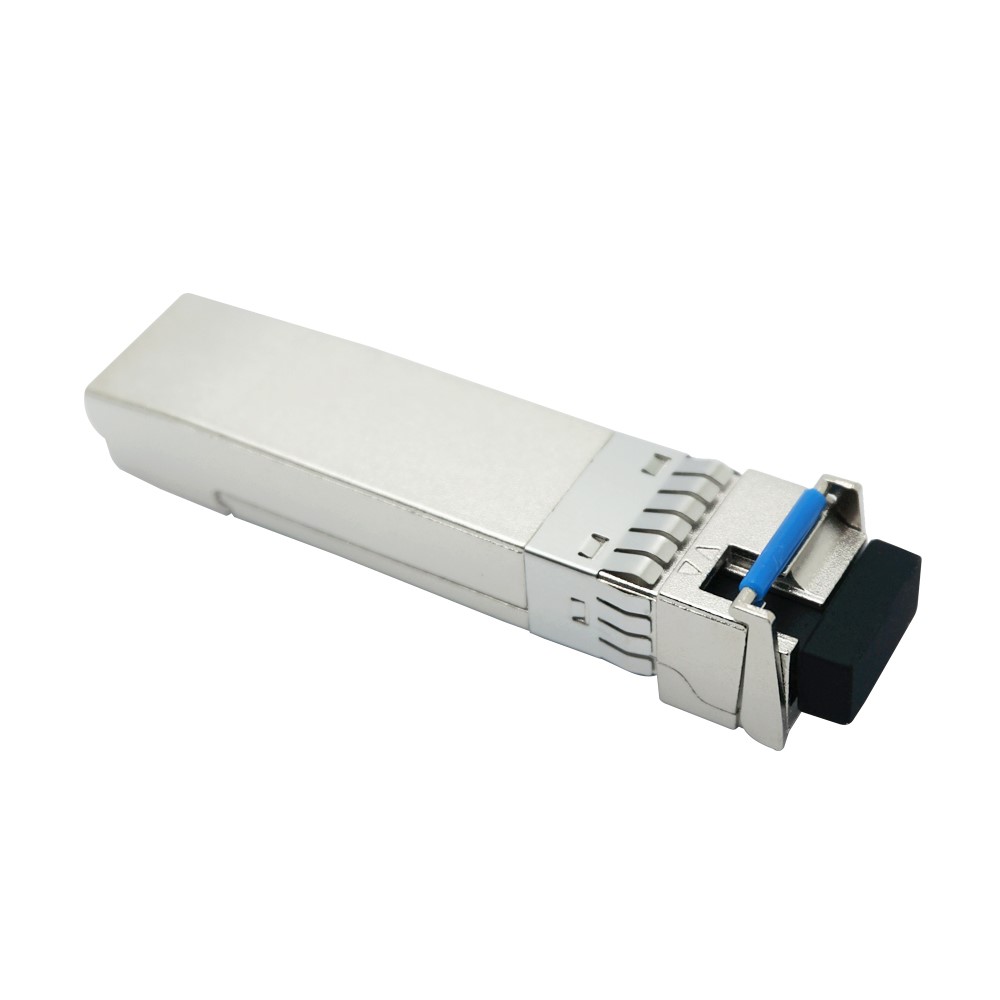

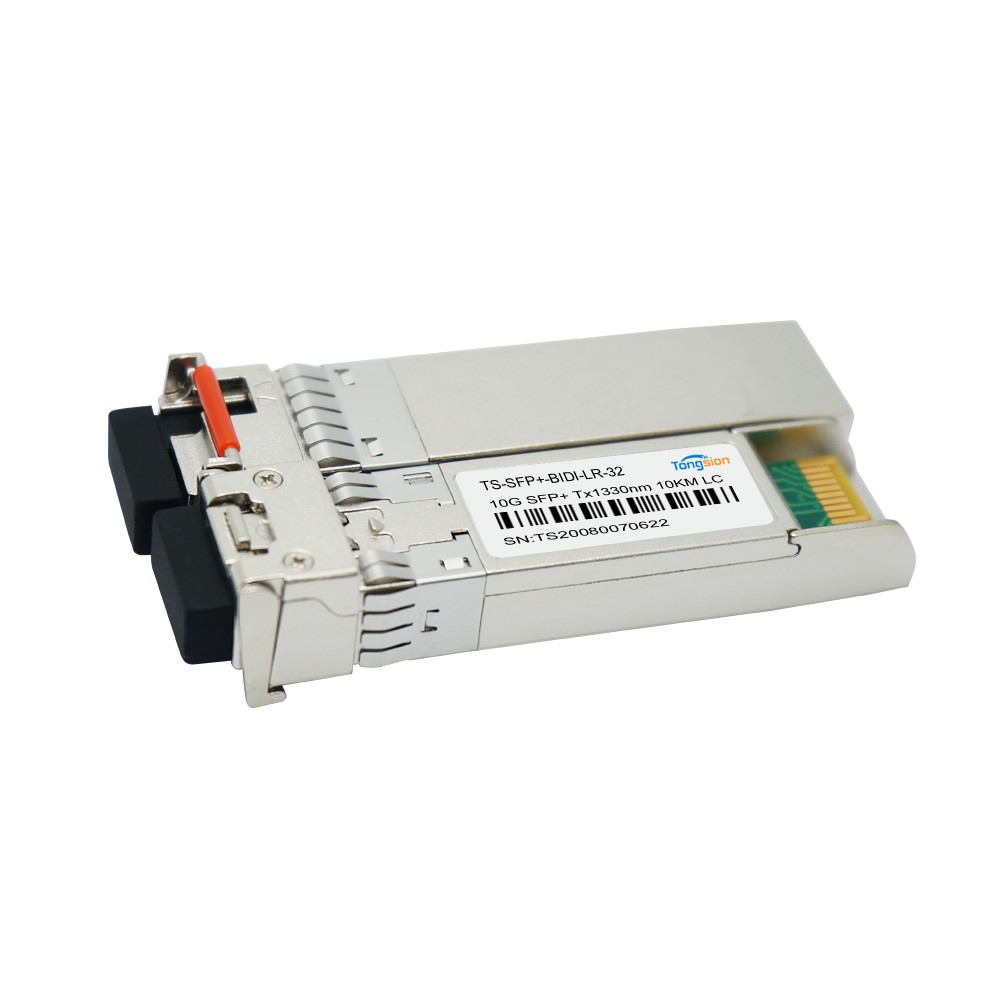

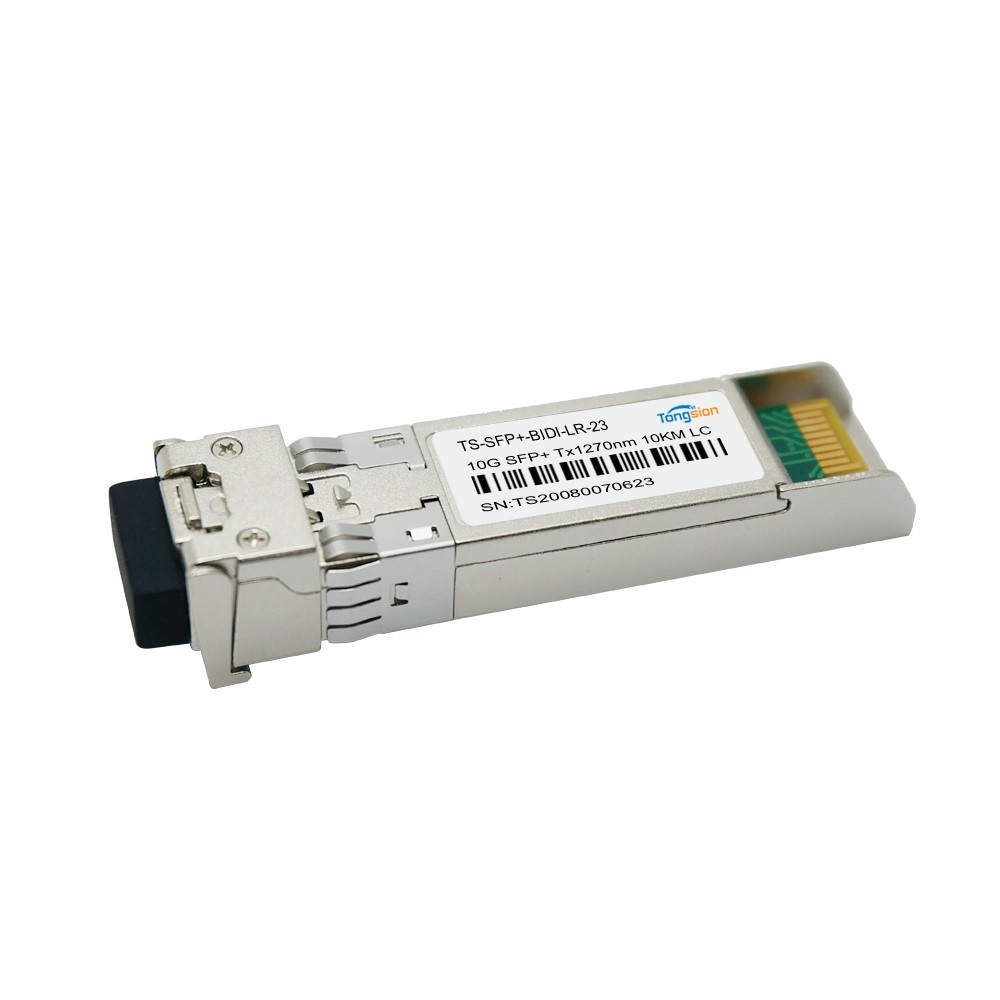

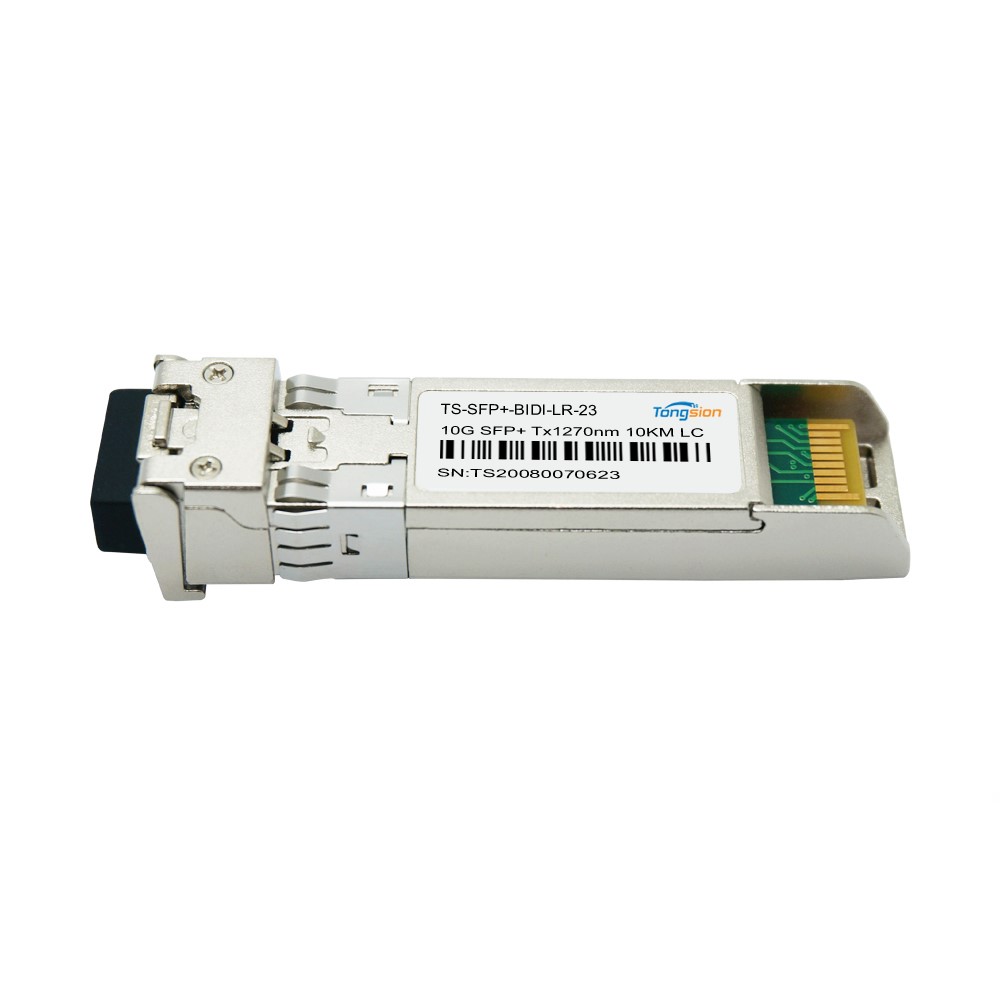

Product Picture



Payment and shipping

Shipping	Shipment: DHL, UPS, FedEx, TNT, EMS, by air or by sea Delivery time: 3-7 working days after received payment receipt Packing: standard export packing or customized packing as your request Port: Shenzhen or Hongkong Professional goods shipping forwarder Service: 7x24 hours reply
Payment	* Payment terms: T/T, Paypal, Western Union, Payoneer

FAQ

1. Are you the real manufacturer?

Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.

2. Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3. Does Tongsion accept a small order?

Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4. Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5. What payment methods do you support?

The methods are followed: T/T, Trade Assurance, Western Union and PayPal.

6. Do you support sample service?

Of course, all of our products support sample services, samples are divided into paid and free

7. What if there is quality problem when we get the goods?

If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
