Lieu d’origine: Chine
Marque: Tongsion / OEM
Numéro de modèle:
TS-SFP-0205 MOQ: 1 PC
Prix: Negotiable
Packing Détails: 10pcs / plateau en plastique
Délai de livraison: 3-5 jours ouvrables
après paiement Durée de paiement: T / T, PayPal, Western Union, Payoneer
Supply Ability: 50000pcs/Month
1.25G sfp Modules 850nm 550M LC Dual Fiber Single Mode Optic Transceiver Compatible With Cisco Huawei HP
TS-SFP-0205
Features
Ÿ Data-rate of 1.25Gbps operation
Ÿ 850nm VCSEL laser and PIN photodetector
Ÿ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Ÿ Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Ÿ 550m transmission with 50/125µm MMF
Ÿ 270m transmission with 62.5/125µm MMF
Ÿ Compatible with SONET OC-24-LR-1
Ÿ Compatible with RoHS
Ÿ +3.3V single power supply
Ÿ Operating case temperature range of 0°C to +70°C (Standard) or -40°C to +85°C (Industrial)
Applications
Ÿ Gigabit Ethernet
Ÿ Fiber Channel
Ÿ Switch to Switch interface
Ÿ Switched backplane applications
Ÿ Router/Server interface
Ÿ Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||||||||
Transmitter | ||||||||||||||
Centre Wavelength | λc | 830 | 850 | 860 | nm | |||||||||
Spectral Width (RMS) | ∆λ | 0.85 | nm | |||||||||||
Average Output Power | Pout | -9 | -3 | dBm | 1 | |||||||||
Extinction Ratio | ER | 9 | dB | |||||||||||
Optical Rise/Fall Time (20%~80%) | tr/tf | 0.26 | ns | |||||||||||
Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||||||||
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||||||||
TX Disable | Disable | 2.0 | Vcc | V | ||||||||||
Enable | 0 | 0.8 | V | |||||||||||
TX Fault | Fault | 2.0 | Vcc | V | ||||||||||

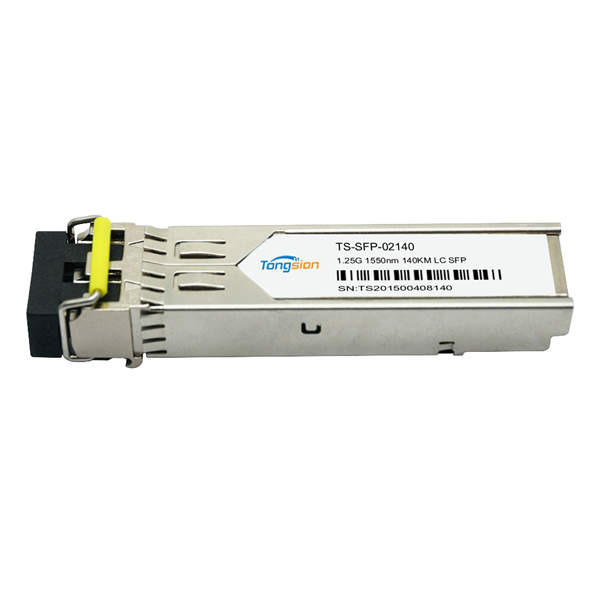

Normal | 0 | 1.25Gbps 1550nm 140KM LC Single Mode Dual Fiber SFP Transceiver Optical Module TS-SFP-02140 Features * Dual data-rate of 1.25Gbps/1.063Gbps operation * 1550nm DFB laser and APD photodetector for 140km transmission * Compliant with SFP MSA and SFF-8472 with duplex LC receptacle * Digital Diagnostic Monitoring: Internal Calibration or External Calibration * Compatible with SONET OC-24-LR-1 * Compatible with RoHS * +3.3V single power supply * Operating case temperature: Standard : 0 to +70°C Extended : -40 to +85°C Applications * Gigabit Ethernet * Fiber Channel * Switch to Switch interface * Switched backplane applications * Router/Server interface * Other optical transmission systems Description The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 140km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA. Ordering information

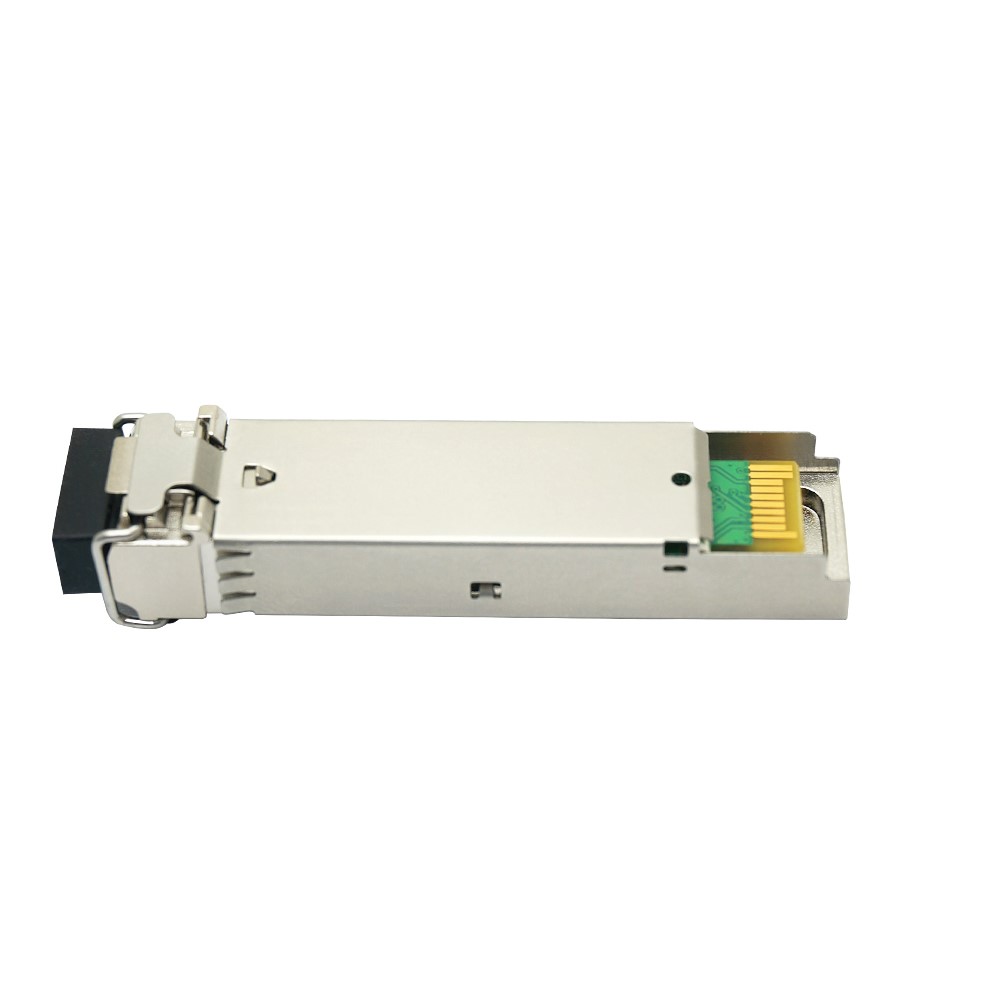

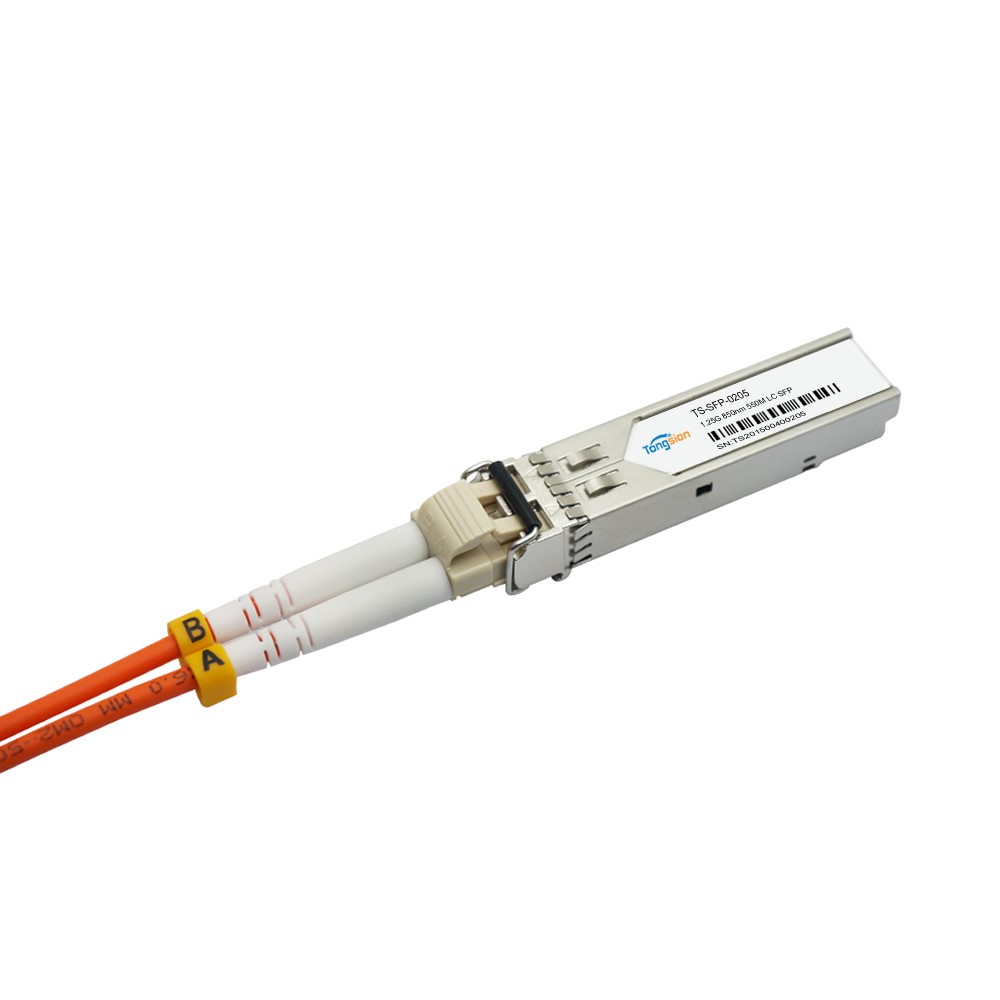

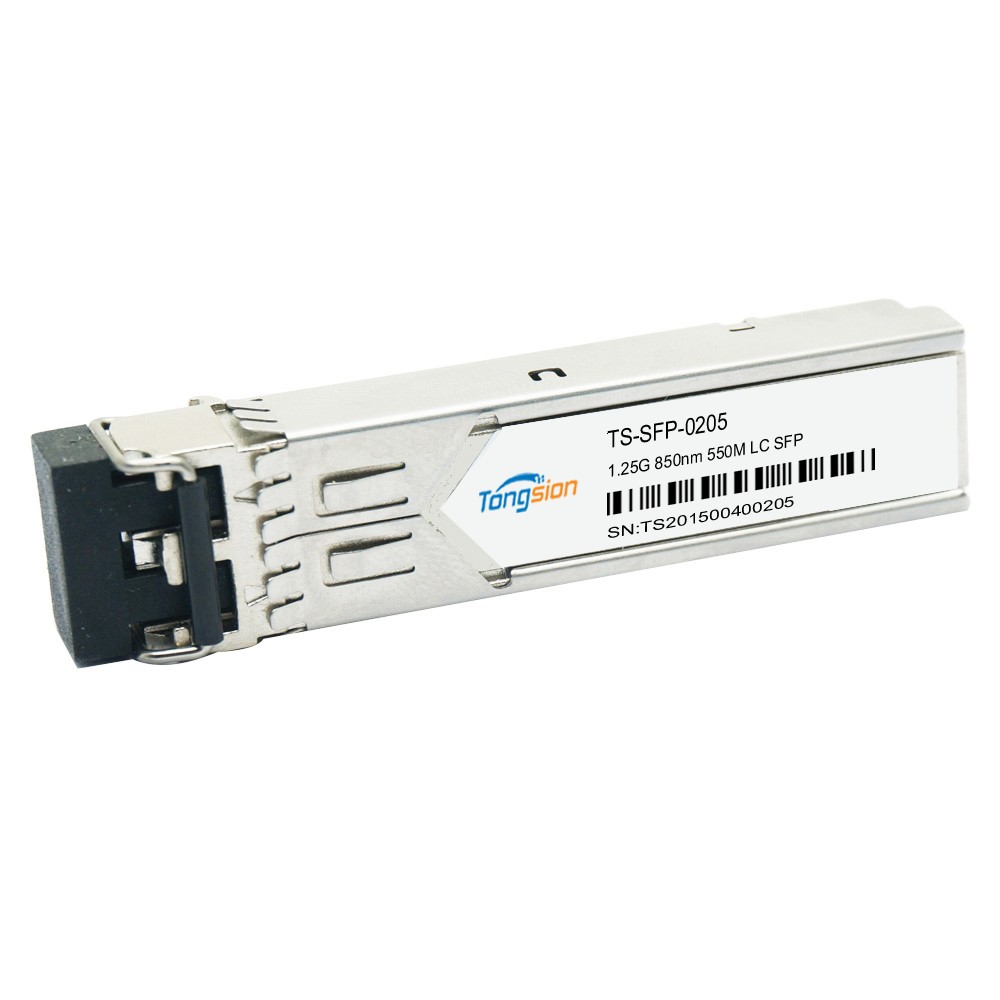

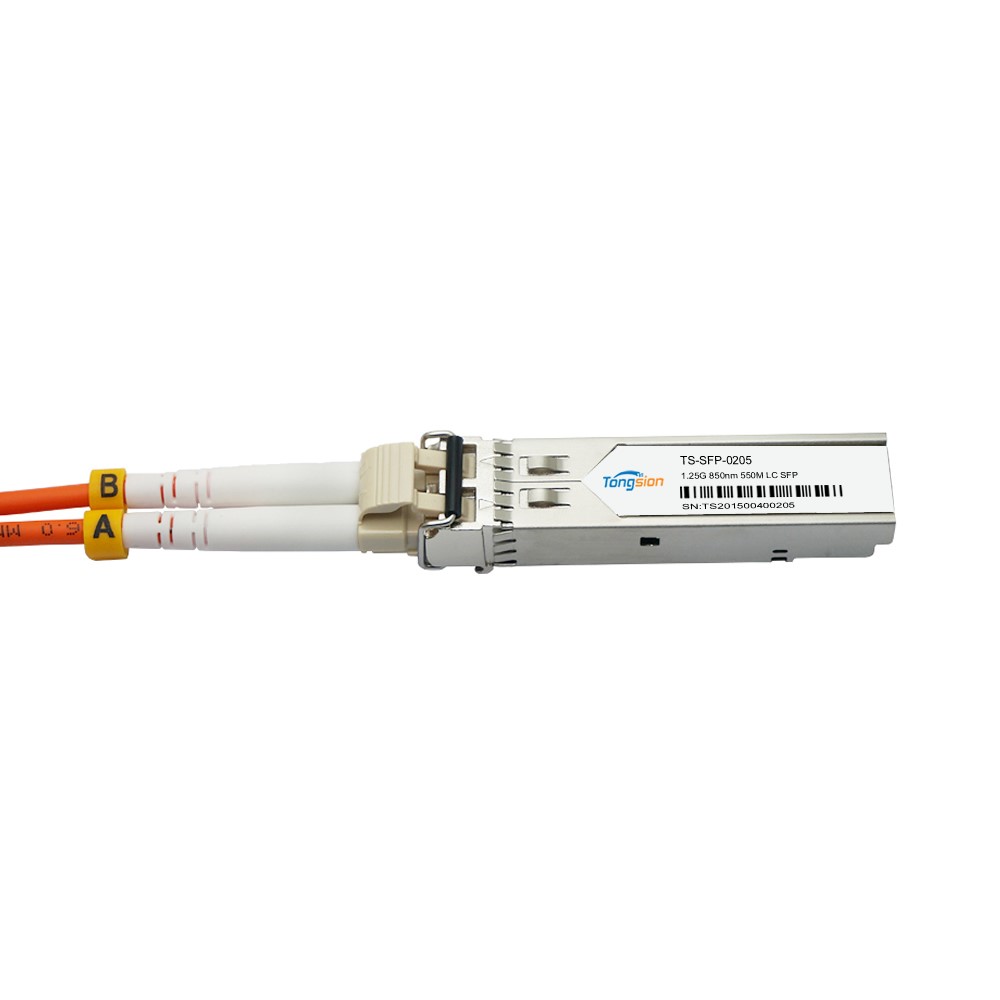

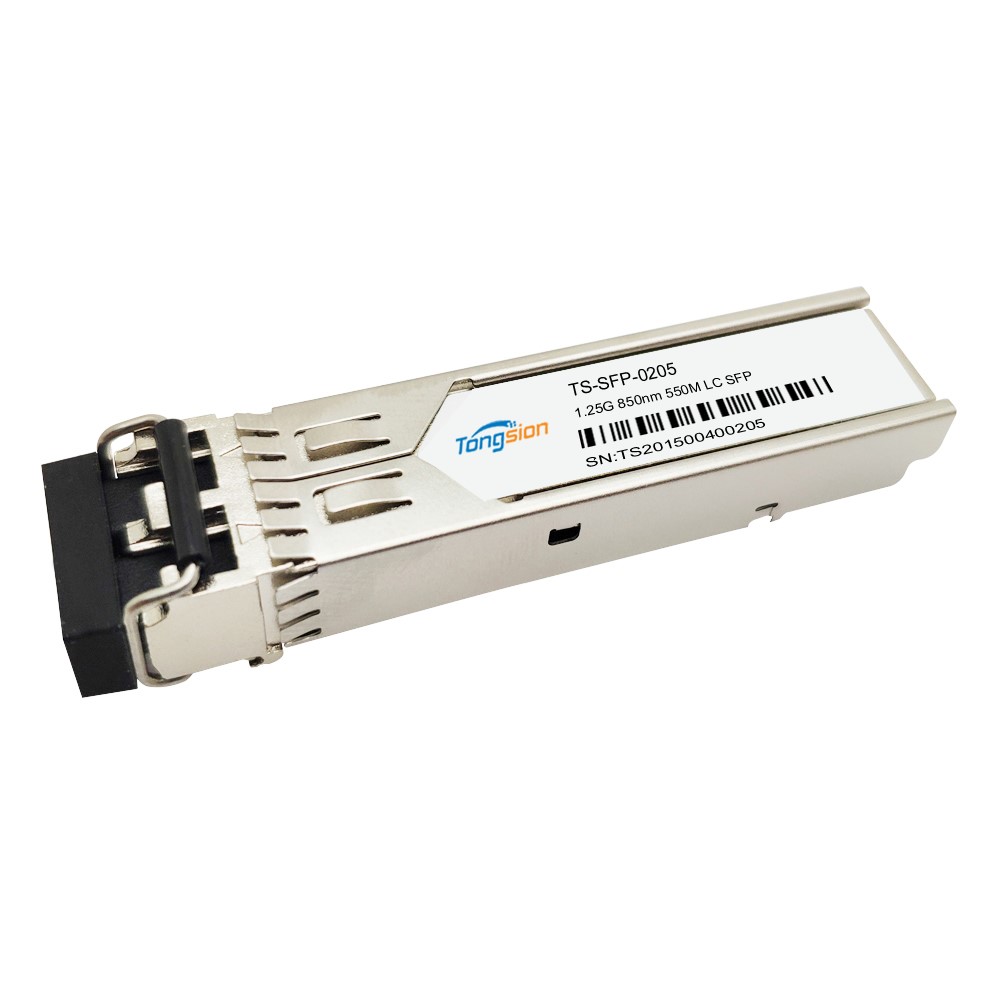

Product Picture
Paymen and Shipping
FAQ 1. Are you the real manufacturer? Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on. 2. Do you offer Compatible Services? Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys.... 3. Does Tongsion accept a small order? Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order. 4. Can you supply OEM products under our brand? Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements. 5. What payment methods do you support? The methods are followed: T/T, Trade Assurance, Western Union and PayPal. 6. Do you support sample service? Of course, all of our products support sample services, samples are divided into paid and free 7. What if there is quality problem when we get the goods? If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
FAQ 1. Are you the real manufacturer? Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on. 2. Do you offer Compatible Services? Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys.... 3. Does Tongsion accept a small order? Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order. 4. Can you supply OEM products under our brand? Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements. 5. What payment methods do you support? The methods are followed: T/T, Trade Assurance, Western Union and PayPal. 6. Do you support sample service? Of course, all of our products support sample services, samples are divided into paid and free
PREVIOUS：Émetteur-récepteur optique 10G SFP + BIDI 10KM
NEXT：Émetteur-récepteur optique 100G QSFP28 10KM LC CWDM4
