1.25Gbps 1310nm 20km SFP Module

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-SFP-0220
MOQ: 1PC
Price: Negotiable
Packing Details: PVC box+plastic tray+outer carton
Delivery Time: 2-3 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month

Aliexpress

TS-sfp-0220

Fiber Optic Transceiver 1.25G 1310nm LC Connector 20Km Dual Fiber Single Mode SFP Transceiver

Features

Dual data-rate of 1.25Gbps/1.063Gbps operation
1310nm FP laser and PIN photodetector for 20km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature range of
0°C to +70°C (Standard) or -40°C to +85°C (Industrial)

Applications

Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Description

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.063Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Data Rate	1.25G	Fiber Mode	Single Mode Fiber (SMF)
Types of Interface	LC	Types of Laser	FP
Operating Temperature	Standard 0~70°C	Operating Humidity	0%~90% RH (non condensing)
Transmission distance	10/20/40km	Modes of Communications	Duplex
Wavelength	1310nm	Hot Pluggable Times	200
Receiver Sensitivity	<-23dBm	Extinction Ratio	>9dB
Saturated Optical Power	-3dBm	Power Consumption	<3W
Weight	0.024kg	Power Supply	+3.3V
Hot Pluggable Times	200	Average Output Power	-9 ~ -3dBm

Product parameters:

Part No.	Wavelength	Connector	Temp.	TX Power (dBm)	RX Sens (Max.) (dBm)	DDMI	Distance
TS-SFP-0210	T 1310FP/rx 1100~1610	LC	-20 to 70	-9 to-1	-22	F	10km
TS-SFP-0220	T 1310FP/rx 1100~1610	LC	-20 to 70	-9 to-0	-23	F	20km
TS-SFP-0240	T 1550DFP /R 1100~1610	LC	-20 to 70	-5~0	-24	T	40Km
TS-SFP-0280	T 1610 CWDM/ R 1100~1610	LC	-20 to 70	-3 to 2	-26	T	80km

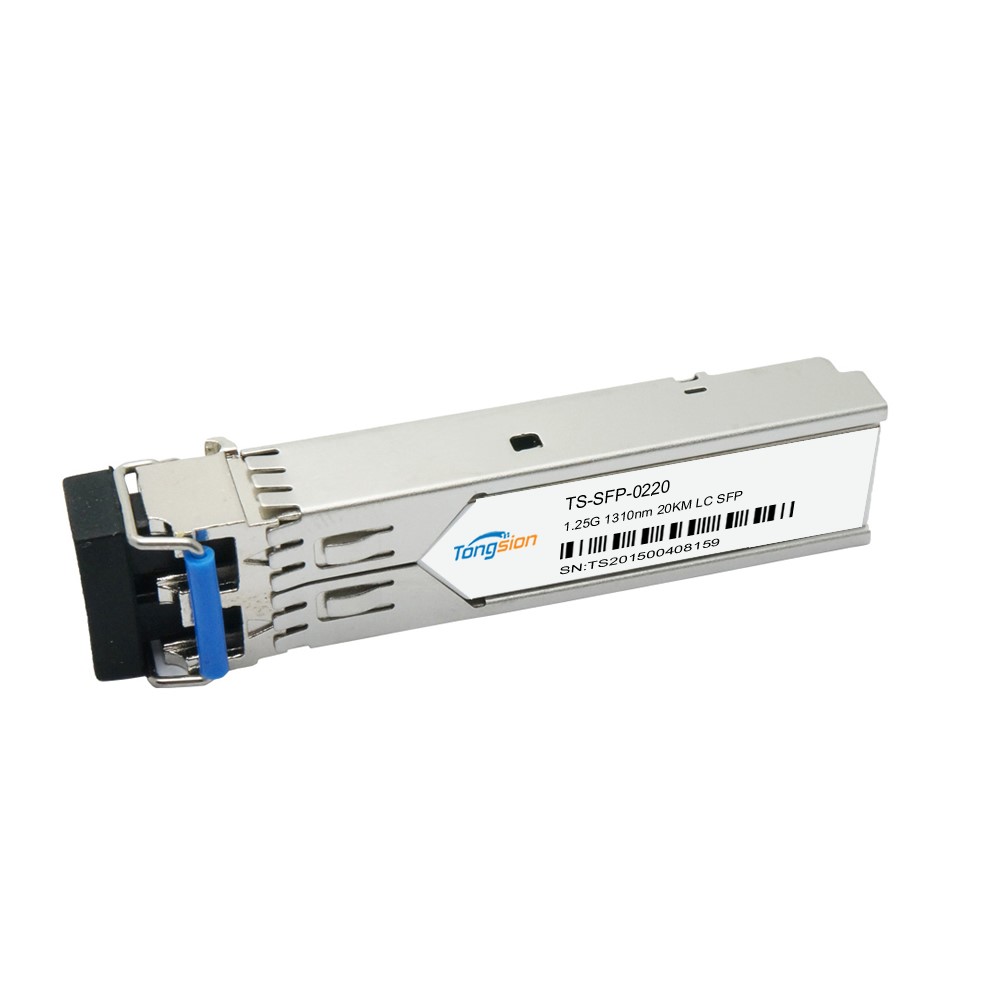

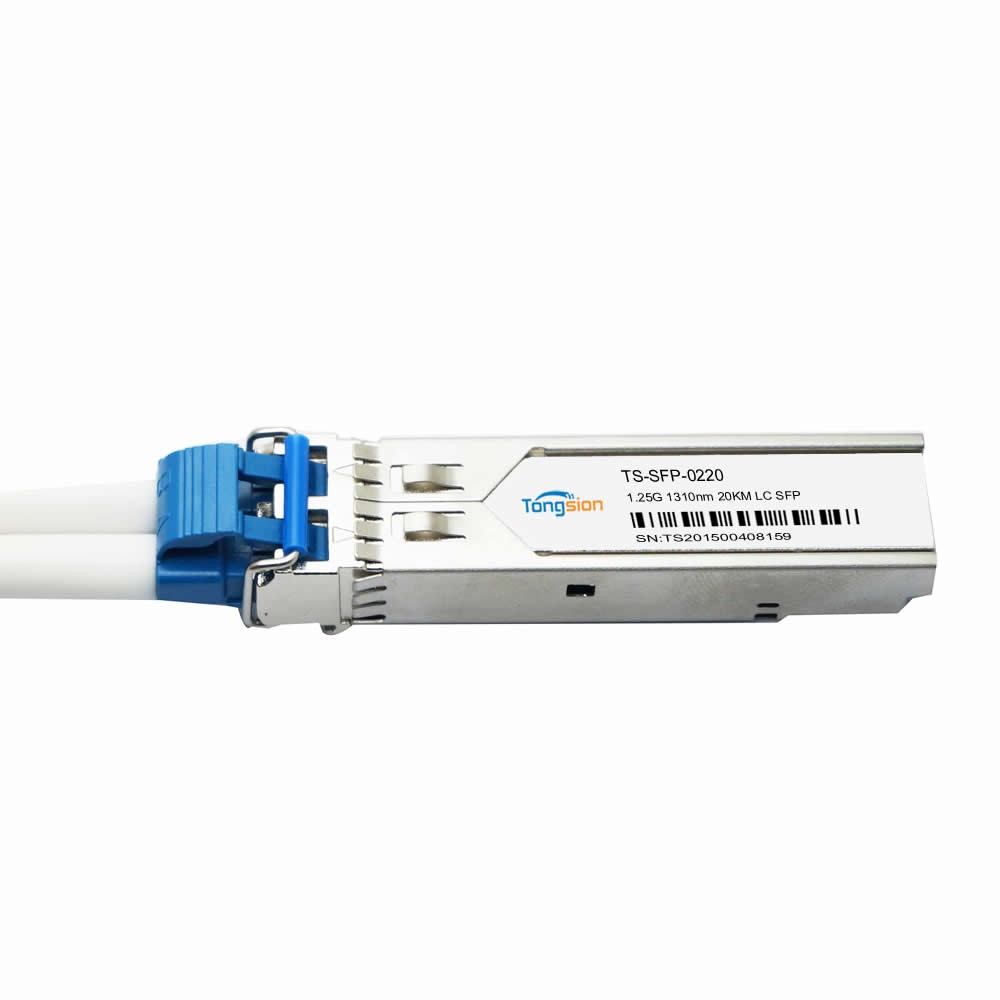

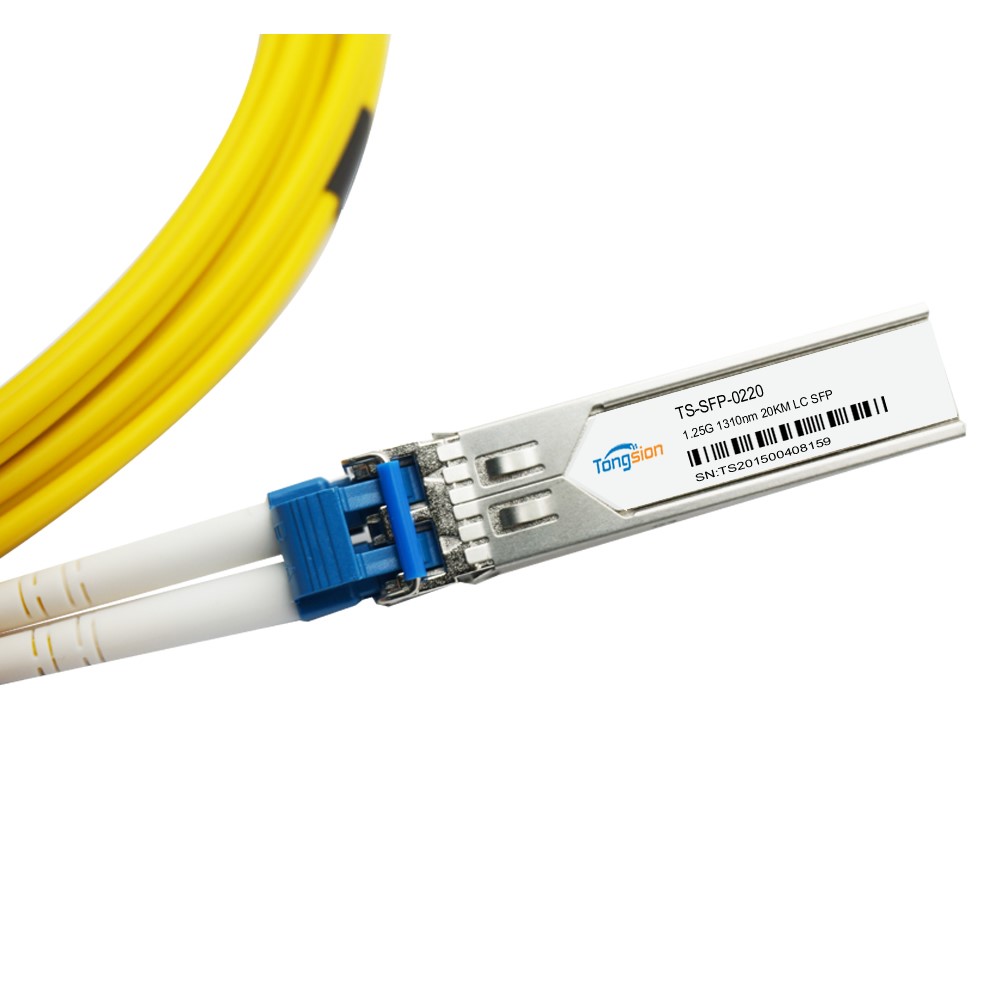

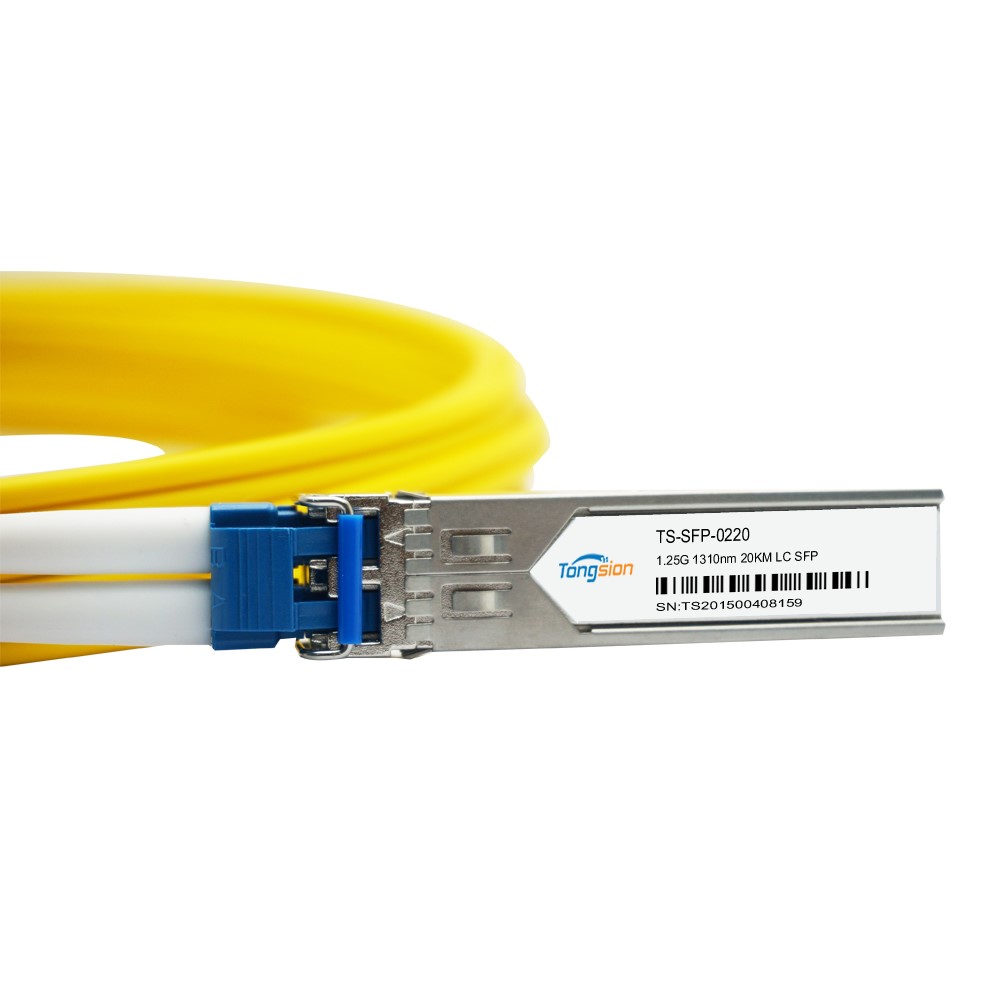

Product Pictures

Optical SFP Module (11)_副本.jpg


Shipping	Shipment: DHL, UPS, FedEx, TNT, EMS, by air or by sea Delivery time: 3-7 working days after received payment receipt Packing: standard export packing or customized packing as your request Port: Shenzhen or Hongkong Professional goods shipping forwarder Service: 7x24 hours reply
Payment	* Payment terms: T/T, Paypal, Western Union, Payoneer

FAQ

1. Are you the real manufacturer?

Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.

2. Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3. Does Tongsion accept a small order?

Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4. Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5. What payment methods do you support?

The methods are followed: T/T, Trade Assurance, Western Union and PayPal.

6. Do you support sample service?

Of course, all of our products support sample services, samples are divided into paid and free

7. What if there is quality problem when we get the goods?

If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
