1.25G 1310nm BIDI 3KM LC SFP Module

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-WDM-0203A/B
MOQ: 1 Pair
Price: Negotiable
Packing Details: 10pcs/plastic tray
Delivery Time: 3-5 working days after payment
Payment Term: T/T, Paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month

1.25G Bidi Fiber Optic sfp Module LC Connector 3KM Gigabit Optical Transceiver

TS-WDM-0203A/B

Product Name	SFP Module, Optical Transceiver	Datarate	1.25G
Wavelength	1310nm/1550nm	Transmission Distance	3KM
Connector	LC	Fiber Type	Sinplex. Single Mode
Temperature	Operating Temperature: Commerical:0 To 70 °C Industrial:-40 To 85 °C	Warranty	3 Years
High Light	Gigabit Ethernet,Fiber Channel,Switch To Switch Interface

Description
SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 120km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Feature
1. Supports 1.25Gbps/1.0625Gbps bit rates
2. Bi-Directional SC/PC connector
3. Hot pluggable SFP footprint
4. 1490nm DFB laser and 1550nm APD photo detector
5. 1550nm DFB laser and 1490nm APD photo detector
6. Applicable for 120Km SMF connection
7. Low power consumption, < 1.0W
8. Digital Diagnostic Monitor Interface
9. Compliant with SFP MSA and SFF-8472
10. Very low EMI and excellent ESD protection
11. Operating case temperature:Commerical:0 to 70 °C Industrial:-40 to 85 °C

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit	Note
Supply Voltage	Vcc	-0.5	4.0	V
Storage Temperature		-40	85	°C
Relative Humidity		5	85	%

Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.

General Operating Characteristics

Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Data Rate			1250		Mb/s
Supply Voltage	Vcc	3.13	3.3	3.47	V
Supply Current	Icc₅			220	mA
Operating Case Temp.	Tc	0		70	°C
		-10		80	°C
		-40		85	°C

OPTICAL CHARACTERISTICS

Transmitter

arameter	Symbol	Min.	Typ	Max.	Unit	Note
Operating Wavelength	λC	1270	1310	1360	nm
Operating Wavelength	λC	1470	1490	1510	nm
Ave. output power (Enabled)	Po	-8		-4	dBm	1
Extinction Ratio	ER	9			dB	1
RMS spectral width	Δλ			4	nm
Rise/Fall time (20%~80%)	Tr/Tf			0.26	ps	2
Output Eye Mask	Compliant with IEEE802.3 z (class 1 laser safety)

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Receiver

Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Operating Wavelength		1470	1490	1510	nm
		1270	1310	1360
Sensitivity	Psen			-22	dBm	1
Min. overload	Pimax	-3			dBm
LOS Assert	Pa	-35			dBm
LOS De-assert	Pd			-23	dBm	2
LOS Hysteresis	Pd-Pa	0.5		6	dB

Note (1): Measured with Light source 1490nm(1310nm), ER=9dB; BER =<10^-12 @PRBS=2^23-1 NRZ.

Note (2): When LOS de-asserted, the RX data+/- output is signal output.

Applications

1. Gigabit Ethernet

2. Fiber Channel

3. Switch to Switch interface

4. Switched backplane applications

5. Router/Server interface

6. Other optical transmission systems

Ordering Information

Part Number	Product Description
TS-WDM-0203AB	1.25Gbps 1310nm/1550nm BIDI 3KM LC DDM
TS-WDM-0203ABS	1.25Gbps 1310nm/1550nm BIDI 3KM SC DDM
TS-WDM-0220AB	1.25Gbps 1310nm/1550nm BIDI 20KM LC DDM
TS-WDM-0220ABS	1.25Gbps 1310nm/1550nm BIDI 20KM SC DDM
TS-WDM-0220AB+	1.25Gbps 1310nm/1490nm BIDI 20KM LC DDM
TS-WDM-0240AB	1.25Gbps 1310nm/1550nm BIDI 40KM LC DDM
TS-WDM-0240ABS	1.25Gbps 1310nm/1550nm BIDI 40KM SC DDM
TS-WDM-0240AB+	1.25Gbps 1310nm/1490nm BIDI 40KM LC DDM
TS-WDM-0280AB	1.25Gbps 1490nm/1550nm BIDI 80KM LC DDM
TS-WDM-02100AB	1.25Gbps 1490nm/1550nm BIDI 100KM LC DDM
TS-WDM-02120AB	1.25Gbps 1490nm/1550nm BIDI 120KM LC DDM
TS-WDM-02140AB	1.25Gbps 1490nm/1550nm BIDI 140KM LC DDM
TS-WDM-02160AB	1.25Gbps 1490nm/1550nm BIDI 160KM LC DDM

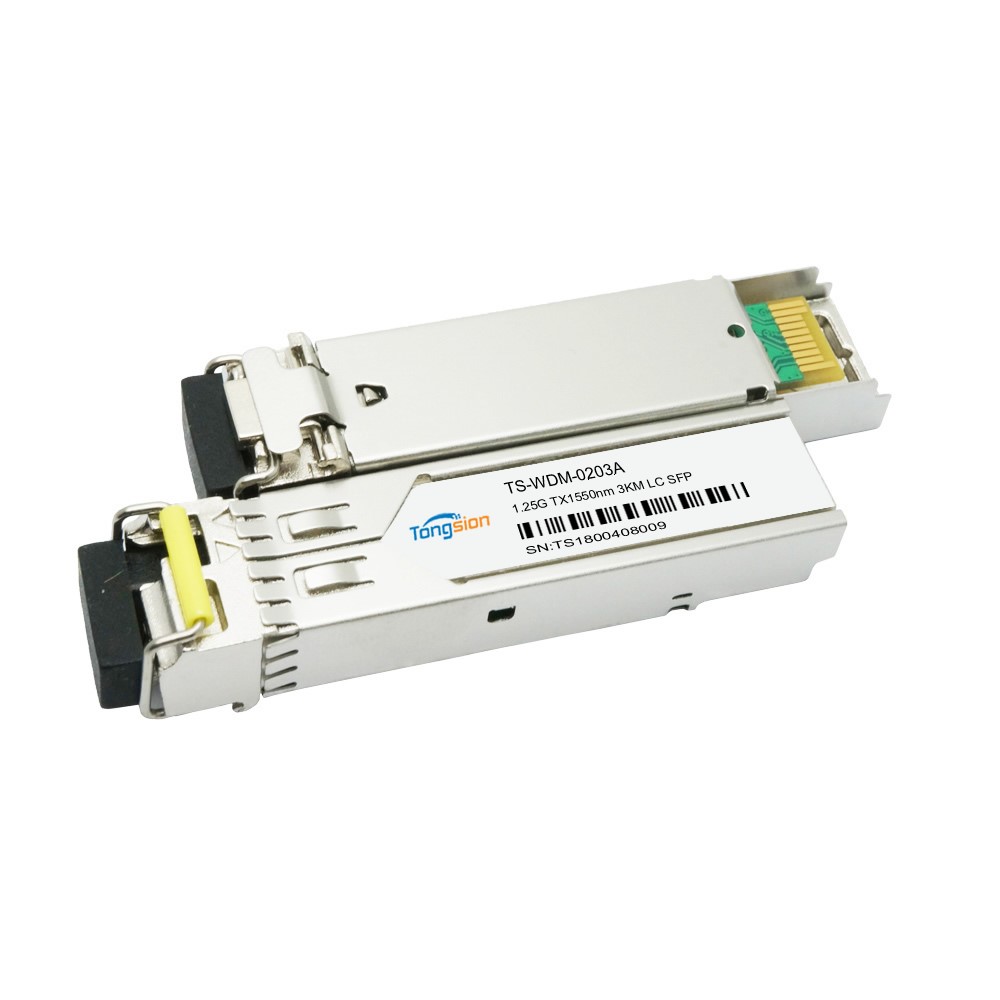

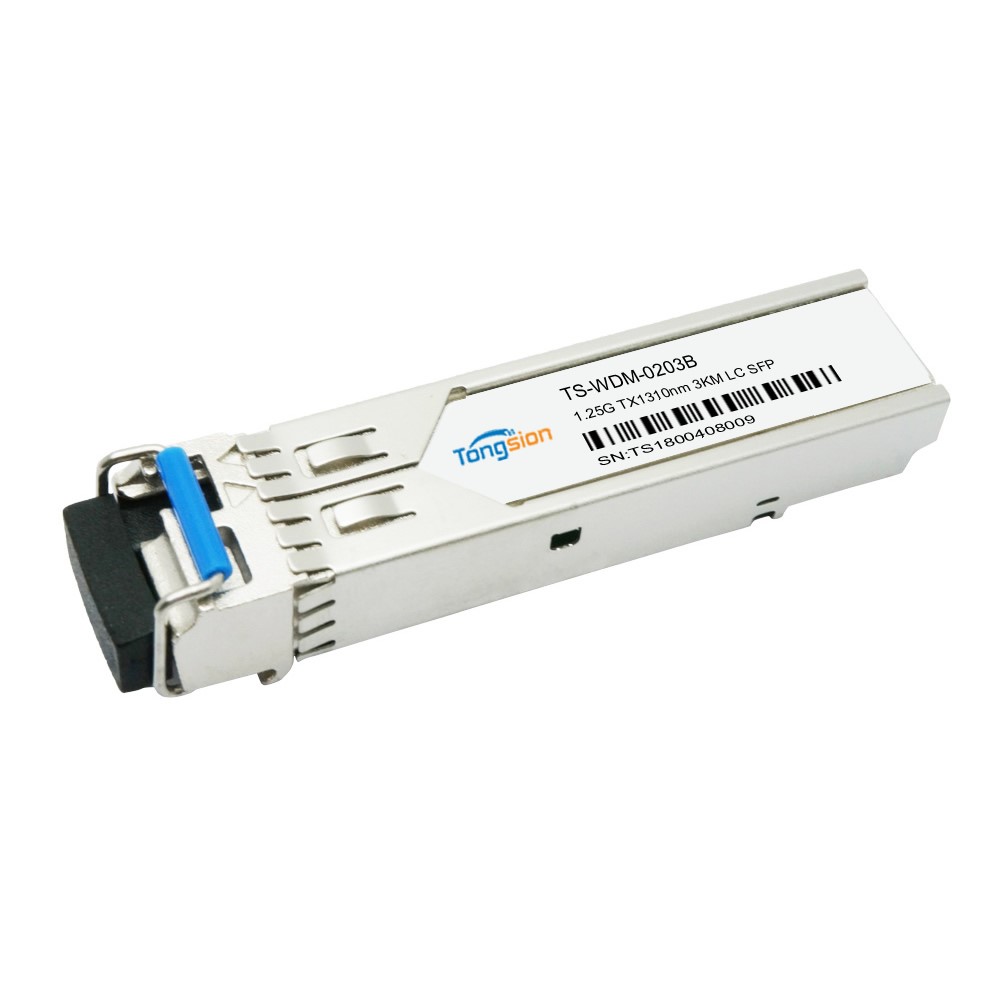

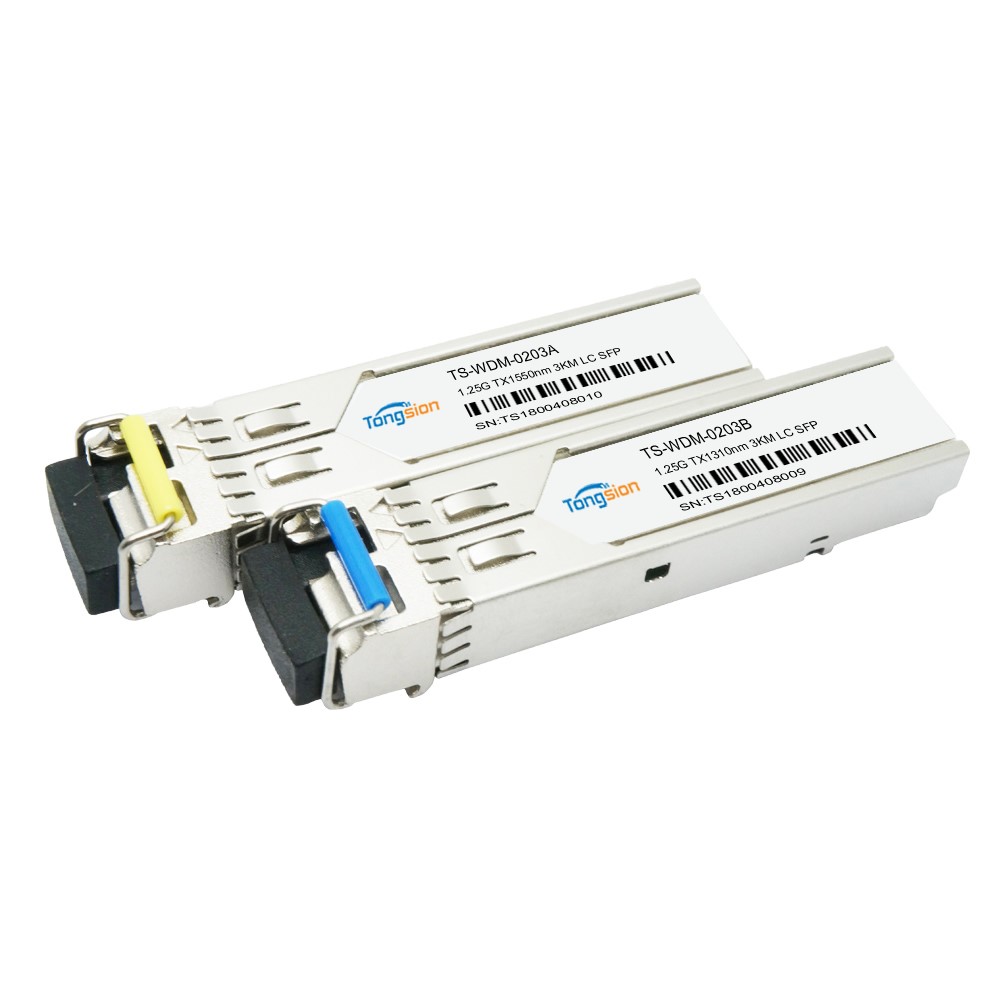

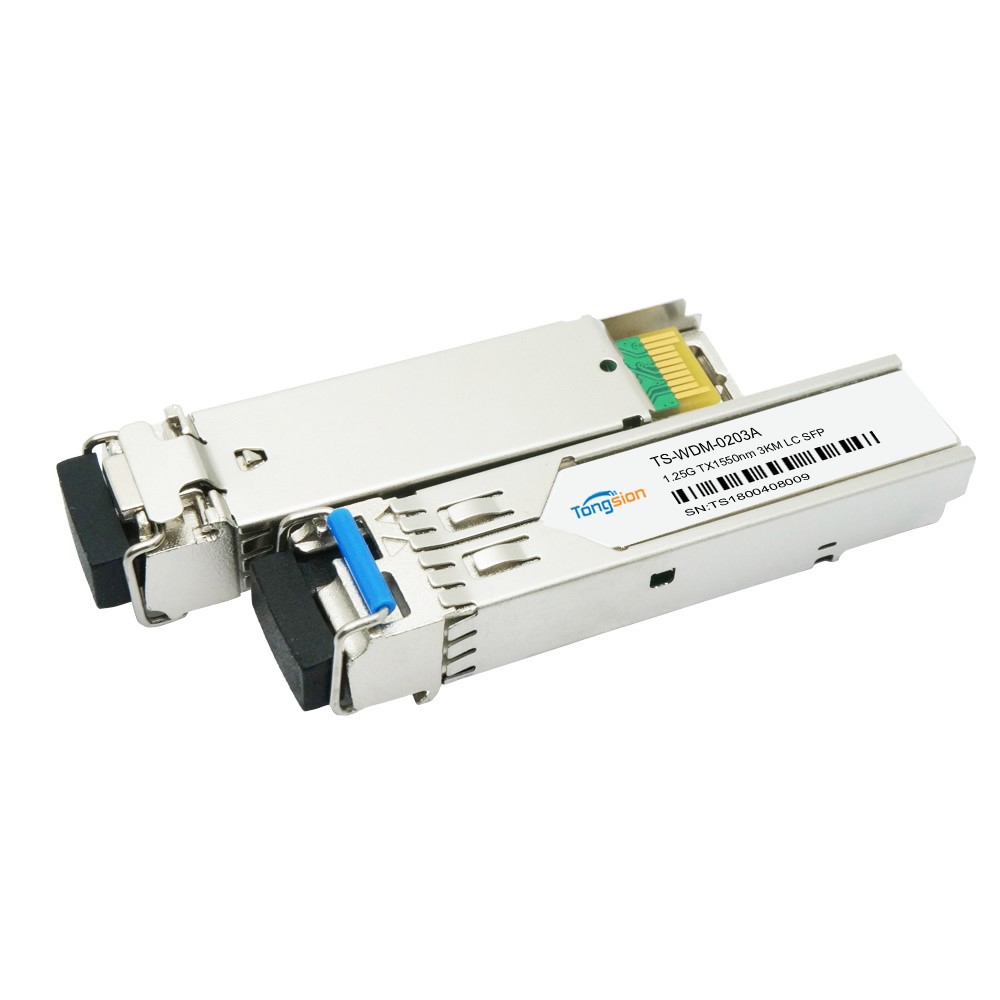

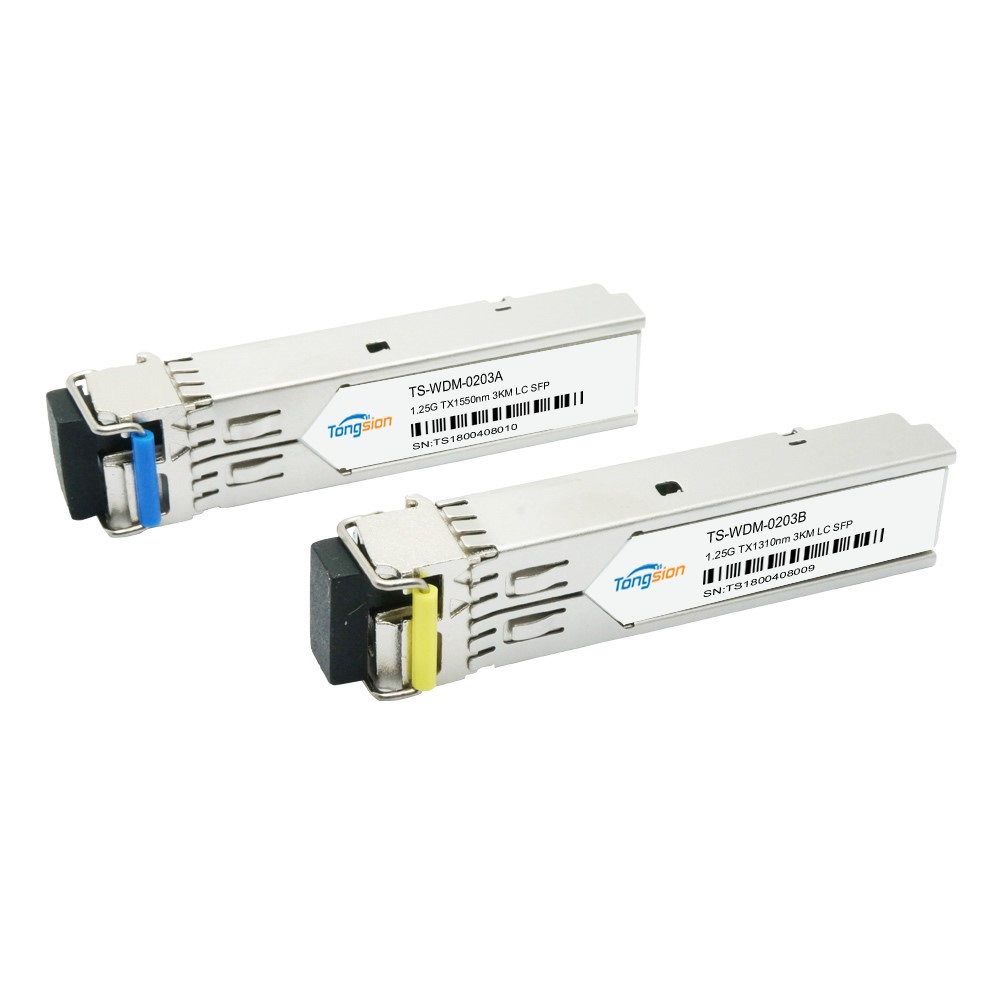

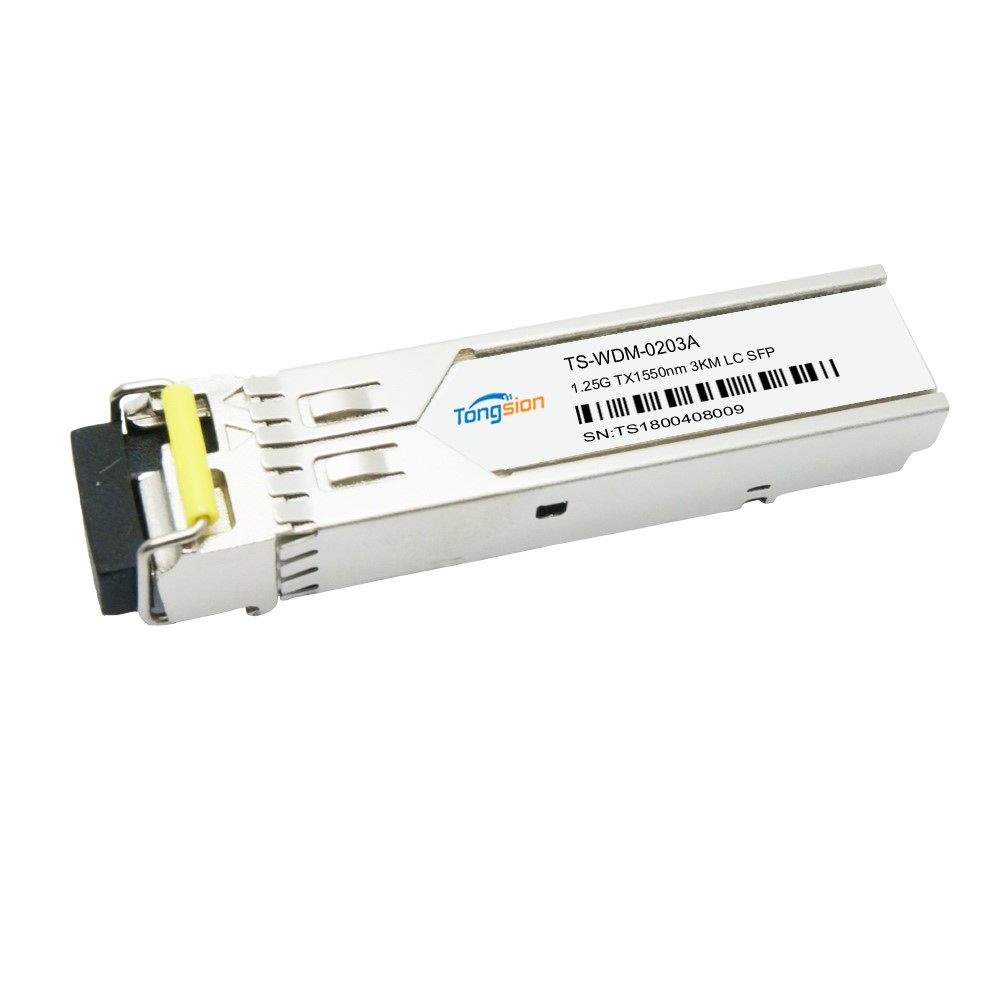

Product Pictures


Payment and shipping

Shipping	Shipment: DHL, UPS, FedEx, TNT, EMS, by air or by sea Delivery time: 3-7 working days after received payment receipt Packing: standard export packing or customized packing as your request Port: Shenzhen or Hongkong Port Professional goods shipping forwarder Service: 7x24 hours reply Payment terms: T/T, Paypal, Western Union, Payoneer
Payment	Payment Terms:T/T, Payment, Western Union, Payoneer

FAQ

1.    Are you the real manufacturer?
Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.
2.    Do you offer Compatible Services?
Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....
3.    Does Tongsion accept a small order?
Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.
4.    Can you supply OEM products under our brand?
Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.
5.   What payment methods do you support?
The methods are followed: T/T, Trade Assurance, Western Union and PayPal.
6. Do you support sample service?
Of course, all of our products support sample services, samples are divided into paid and free
7. What if there is quality problem when we get the goods?
If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
