Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-QSFP+-ER4
MOQ: 1PC
Price: Negotiable

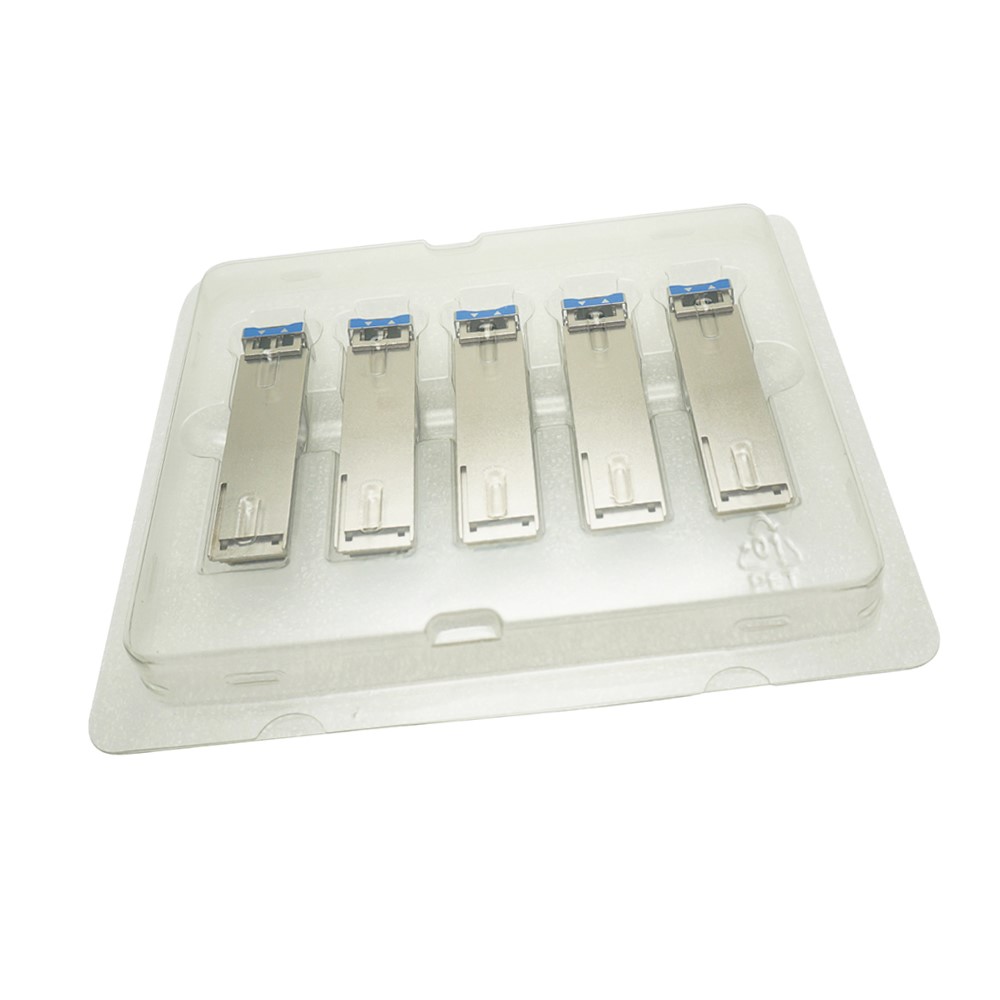

Packing Details: PVC box+plastic tray+outer carton
Delivery Time: 2-3 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month
TS-Qsfp+-ER4
40Gb/s 40km QSFP+ Transceiver Hot Pluggable, Duplex LC Connector, Single mode
Features:
• 4 CWDM lanes MUX/DEMUX design
• Up to 11.2Gbps per channel bandwidth
• Aggregate bandwidth of > 40Gbps
• Duplex LC connector
• Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard
• QSFP MSA compliant
• APD photo-detector
• Up to 40 km transmission
• Compliant with QDR/DDR Infiniband data rates
• Single +3.3V power supply operating
• Built-in digital diagnostic functions
• Temperature range 0°C to 70°C
• RoHS Compliant Part
Applications:
• Rack to rack
• Data centers Switches and Routers
• Metro networks
• Switches and Routers
• 40G BASE-ER4 Ethernet Links
Description:
The TS-QSFP+-ER4 is a transceiver module designed for 40km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.
The TQP10 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Product Name | Fiber Optical Transceiver | Datarate | 40G QSFP+ |
Wavelength | 1310nm | Transmission Distance | 40KM |
Connector | LC | Fiber Type | Dual fiber, single mode |
Application | Gigabit Ethernet,Fiber Channel,Switch To Switch Interface | Warranty | 3 Years |
High Light | fiber optic transceiver, fiber optic sfp module.40G QSFP+ Transceiver |
Ordering information
Item No | Data Rate | Distance | Wavelength | Connector | Media |
TS-QSFP+-SR4 | 40G/ps | 100M | 850nm | MTP/MPO | MM |
TS-QSFP+-CSR4 | 40G/ps | 300M | 850nm | MTP/MPO | MM |
TS-QSFP+-IR4 | 40G/ps | 2km | 4 CWDM | LC | SM |
TS-QSFP+-LR4 | 40G/ps | 10km | 4 CWDM | LC | SM |
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

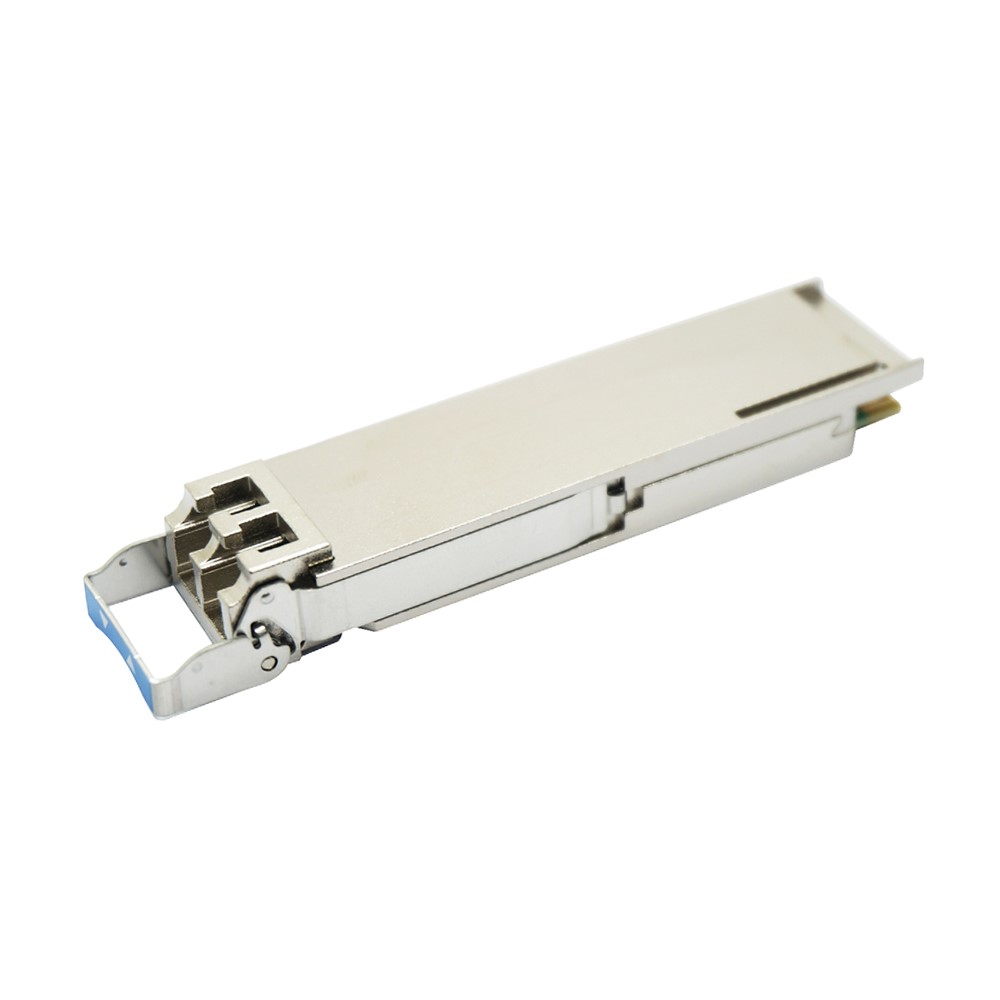

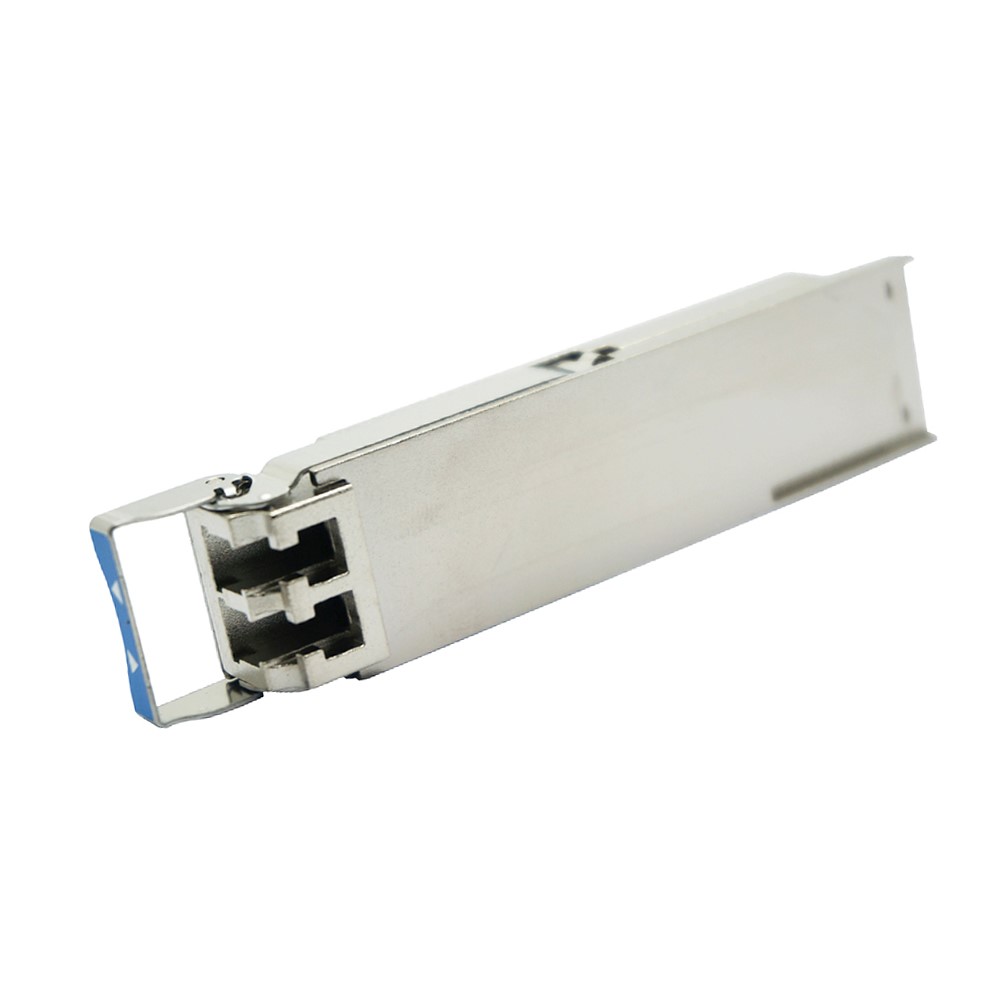

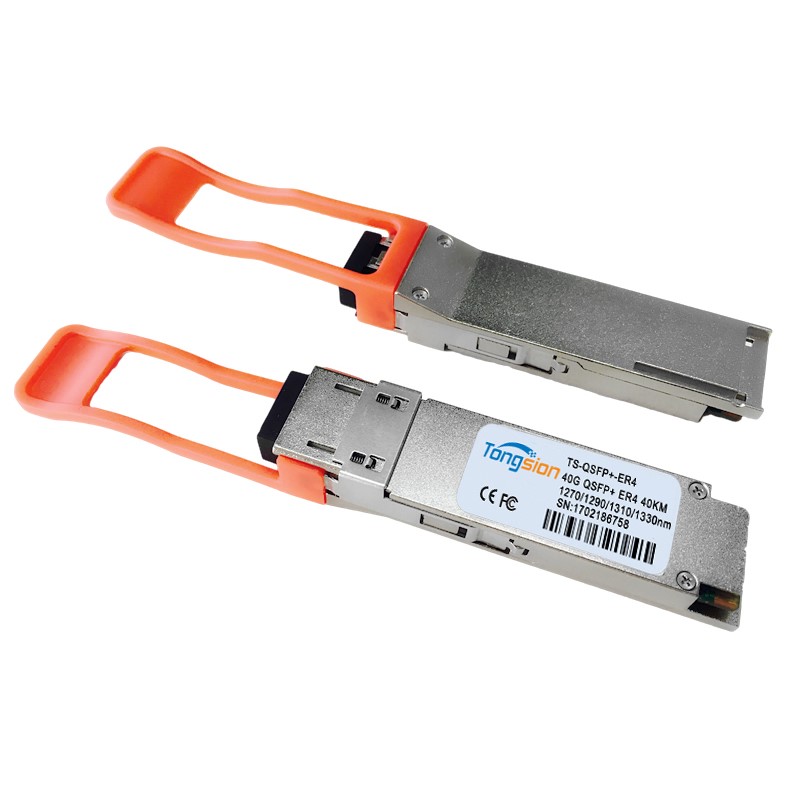

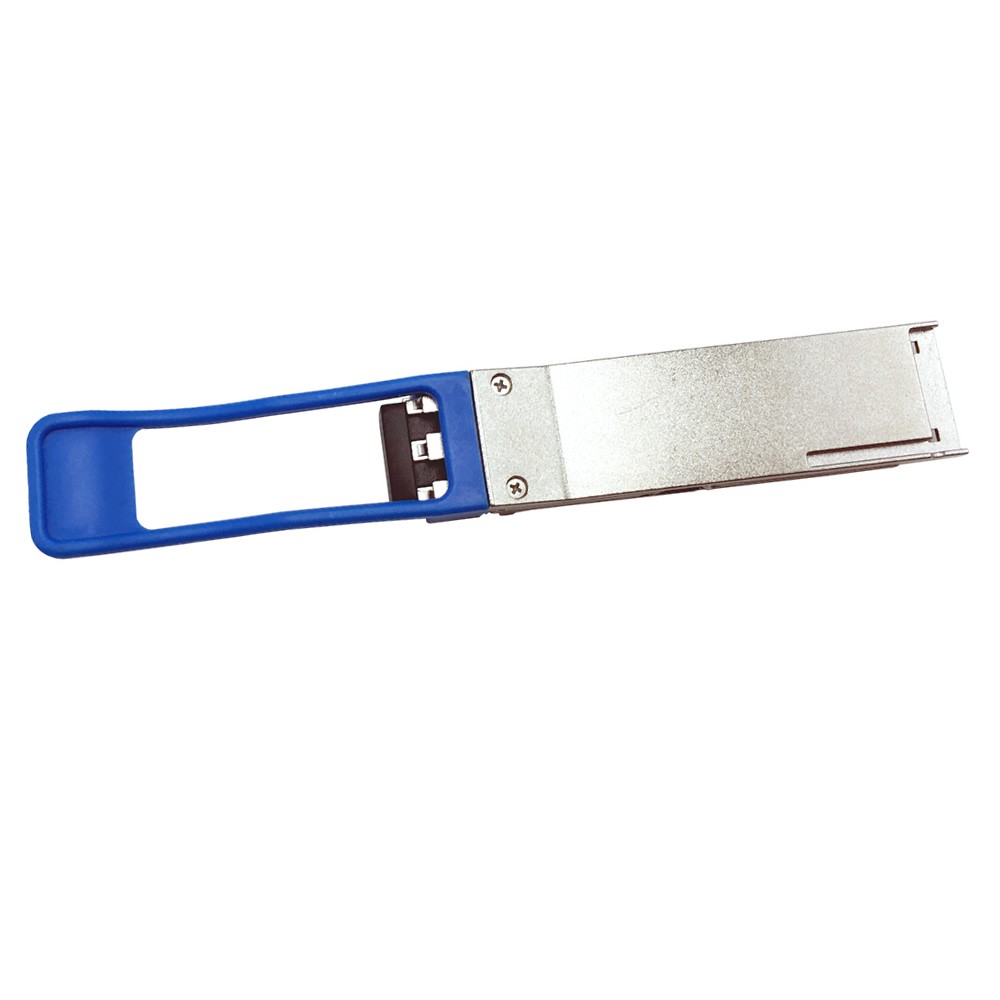

Product Picture
Payment and shipping
Shipping | *Shipment: DHL, UPS, FedEx, TNT, EMS, by air or by sea *Delivery time: 3-7 working days after received payment receipt *Packing: standard export packing or customized packing as your request *Port: Shenzhen or Hongkong *Professional goods shipping forwarder *Service: 7x24 hours reply |
Payment | * Payment terms: T/T, Paypal, Western Union, Payoneer |
